industrial pressure transmitter is a standard
and most
popular transmitter applied in air and liquid
pressure measuring. A high
sensitivity silicon pressure chip is employed
in the sensor. The most important
specification for industry application is

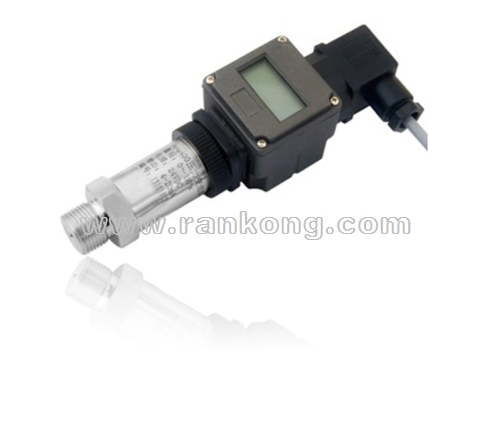

long term stability. The PRM300
pressure transmitter is designed for industry
application with perfect long term
stability.
Pressure
range
|
-0.1MPa…0~20kPa…100MPa
|
Overpressure
|
1.5
times FS or 110MPa (min.value is valid)
|
Power
supply
|
1.5mADC
|
Signal
|
≥70mVDC(0~20kPa,≥50mVDC)
|
Accuracy
|
±0.1%FS(min.)
±0.25%FS(typ.) ±0.5%FS(max.)
|
Long-term
stability
|
±0.3%FS/year
|
Compensation
temp.
|
0℃~50℃
|
Medium
temp.
|
-20℃~150℃
-20℃~300℃
|
Storage
temp.
|
-40℃~100℃
|
Zero
temp. coefficient
|
±0.02%FS/℃(typ.)
±0.04%FS/℃(max.)
|
FS
temp. coefficient
|
±0.02%FS/℃(typ.)
±0.04%FS/℃(max.)
|
Housing
|
Stainless
steel 1Cr18Ni9Ti
|
Diaphragm
|
Stainless
steel 316L
|
O-ring
|
Viton
|
Cable
|
Polythene
|
Response
time(10%~90%)
|
≤1ms
|
Insulation
resistance
|
100MΩ,100VDC
|
Production
|
IP65(cable
connection)
|
Order Note:
1. We can also provide the user with voltage
power supply product, the power supply is more than 9V; please note it when you
select option codes;
2. When the user install flush diaphragm
product at local place, please pay attention to correct sealing method to
prevent the stress affecting product stability;
3. If the customer has special requirement,
please feel free to contact our company.
