PMR311 pressure transmitter is designed for industry

application with perfect long term stability.

Power Supply:12VDC~36VDC(24VDC standard)
Output Signal:4~20mA、1~5V、0~10mA、0~20mA、0~5V
Measuring Range:0~1kPa...3.5MPa
Compensated Temperature Range:0~50℃
Media temperature:-20~85℃
Ambient Temperature:-20~85℃
Combined Error:0.1%FS、0.3%FS、0.5%FS

Pressure range	-0.1MPa…0～20kPa…100MPa
Overpressure	1.5 times FS or 110MPa (min.value is valid）
Power supply	1.5mADC
Signal	≥70mVDC（0～20kPa，≥50mVDC）
Accuracy	±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.）
Long-term stability	±0.3%FS/year
Compensation temp.	0℃～50℃
Operation temp.	-10℃～80℃
Storage temp.	-40℃～100℃
Zero temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
FS temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
Housing	Stainless steel 1Cr18Ni9Ti
Diaphragm	Stainless steel 316L
O-ring	Viton
Cable	Polythene
Response time（10%～90%）	≤1ms
Insulation resistance	100MΩ，100VDC
Production	IP65（cable connection）

Order Note：

1. We can also provide the user with voltage power supply product, the power supply is more than 9V; please note it when you select option codes;

2. When the user install flush diaphragm product at local place, please pay attention to correct sealing method to prevent the stress affecting product stability;

Pressure range	-0.1MPa…0～20kPa…100MPa
Overpressure	1.5 times FS or 110MPa (min.value is valid）
Power supply	1.5mADC
Signal	≥70mVDC（0～20kPa，≥50mVDC）
Accuracy	±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.）
Long-term stability	±0.3%FS/year
Compensation temp.	0℃～50℃
Operation temp.	-10℃～80℃
Storage temp.	-40℃～100℃
Zero temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
FS temp. coefficient	±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
Housing	Stainless steel 1Cr18Ni9Ti
Diaphragm	Stainless steel 316L
O-ring	Viton
Cable	Polythene
Response time（10%～90%）	≤1ms
Insulation resistance	100MΩ，100VDC
Production	IP65（cable connection）

Order Note：

1. We can also provide the user with voltage power supply product, the power supply is more than 9V; please note it when you select option codes;

2. When the user install flush diaphragm product at local place, please pay attention to correct sealing method to prevent the stress affecting product stability;

3. If the customer has special requirement, please feel free to contact our company

欧美日本国产老熟女视频,亚洲欧美日韩国产专区,婷婷丁香五啪啪五月综合,精品第一国产综合精品AⅤ

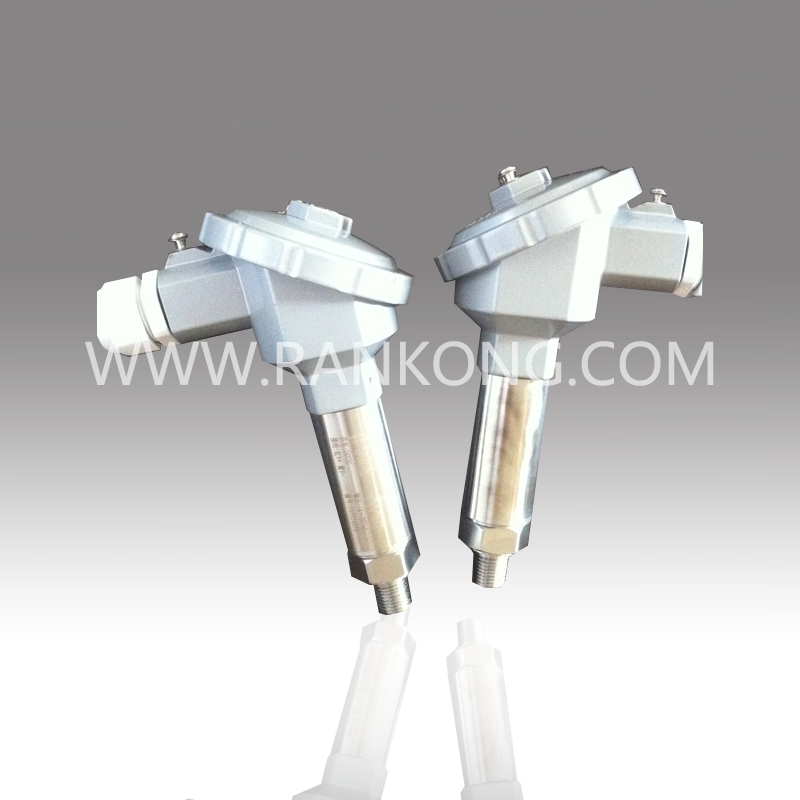

PMR311 Industrial Pressure Transmitter
